Tank Specifications
DOT SpecDOT-C2
Capacity1,050 FT³ / 29.7 M³
Design Pressure14.7 PSIG / 101.4 KPa
Test Pressure22.5 PSIG / 155.1 KPa
Max Temp185°F / 85°C
Max Payload~70,700 LBS
Materials
Shell Material5454-H32 Aluminum
Weld Material5356
Chassis & Weights
GVWR80,000 LBS / 36,287 KG
GAWR All Axles23,000 LBS / 10,433 KG
Tires11R 22.5H, Dual
Rims22.5×8.25 @ 120 PSI / 827 KPa Cold

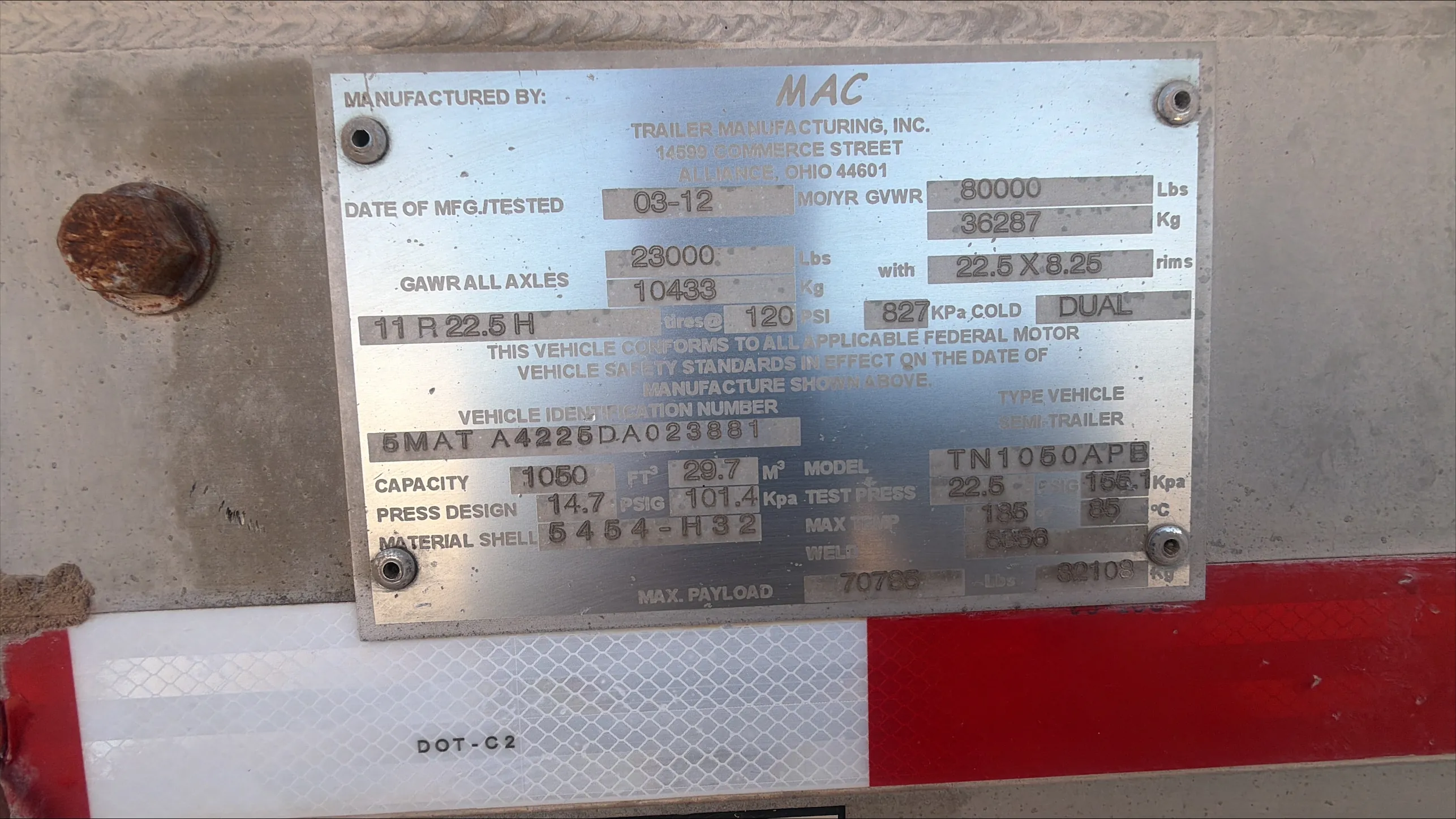

Identification
VIN5MATA4225DA023881
ModelTN1050APB
Date ManufacturedMarch 2012
ManufacturerMAC Trailer Mfg. — Alliance, OH
LocationOdessa, TX
ConditionUsed
