Lovington, NM

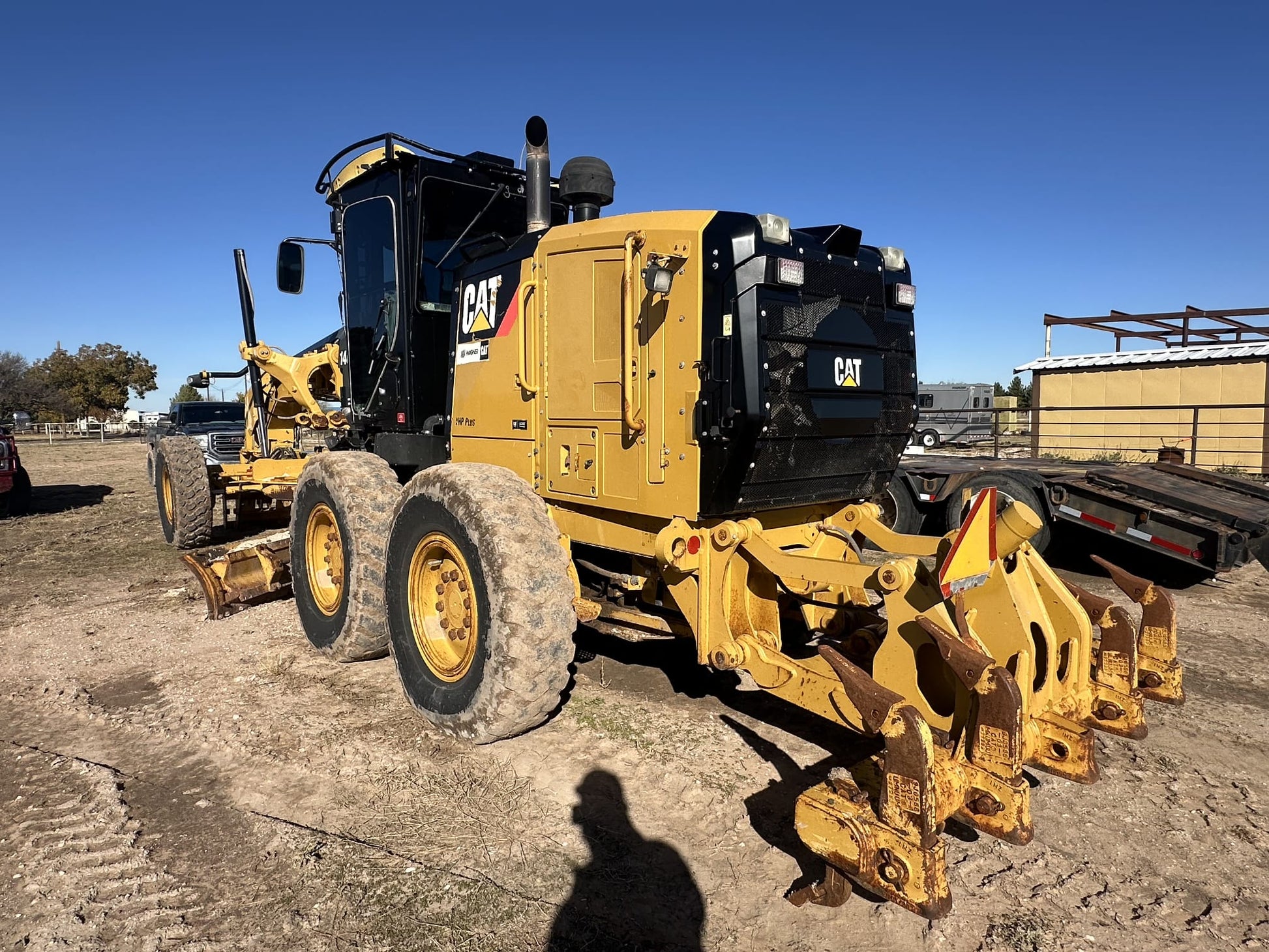

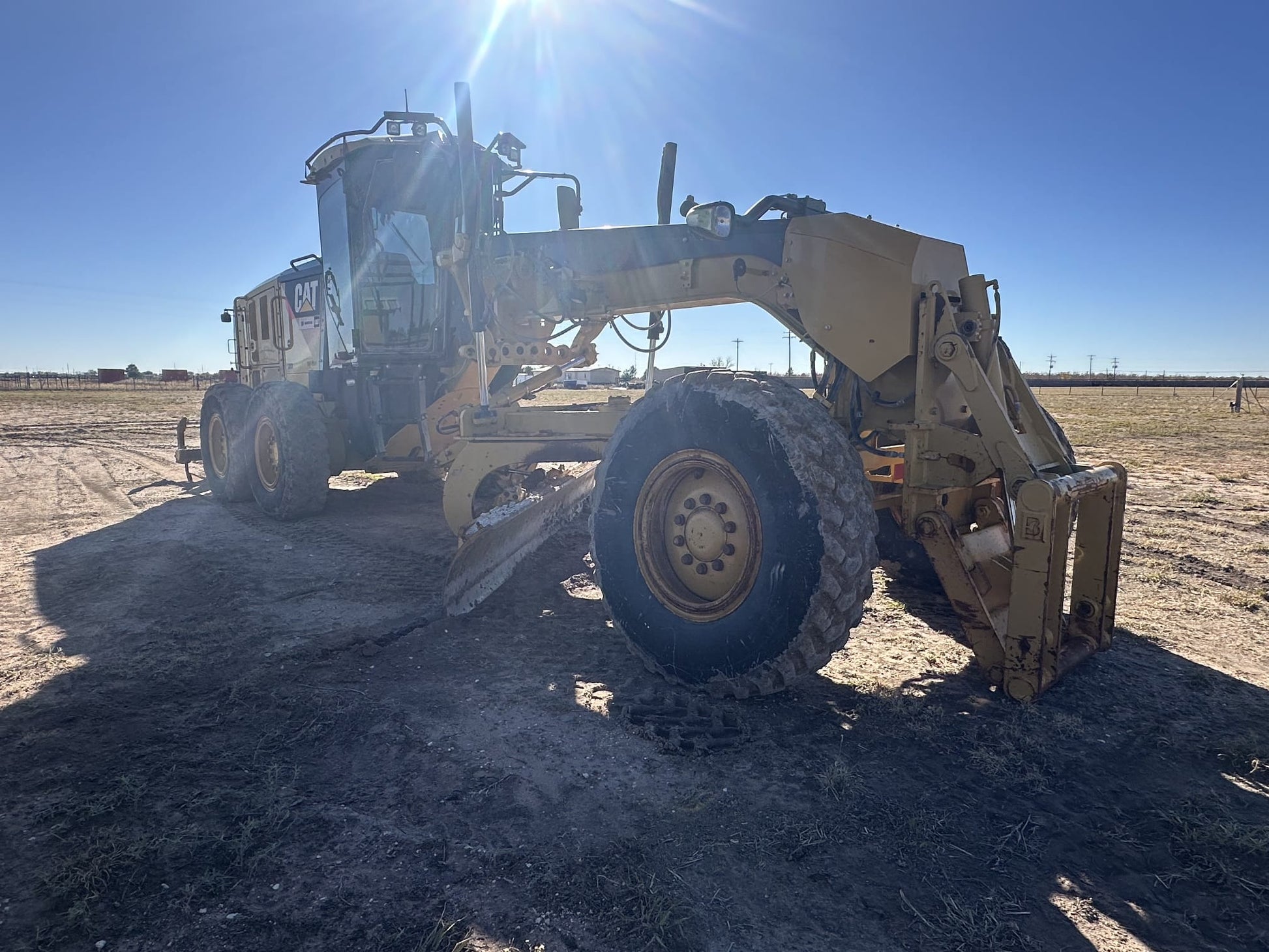

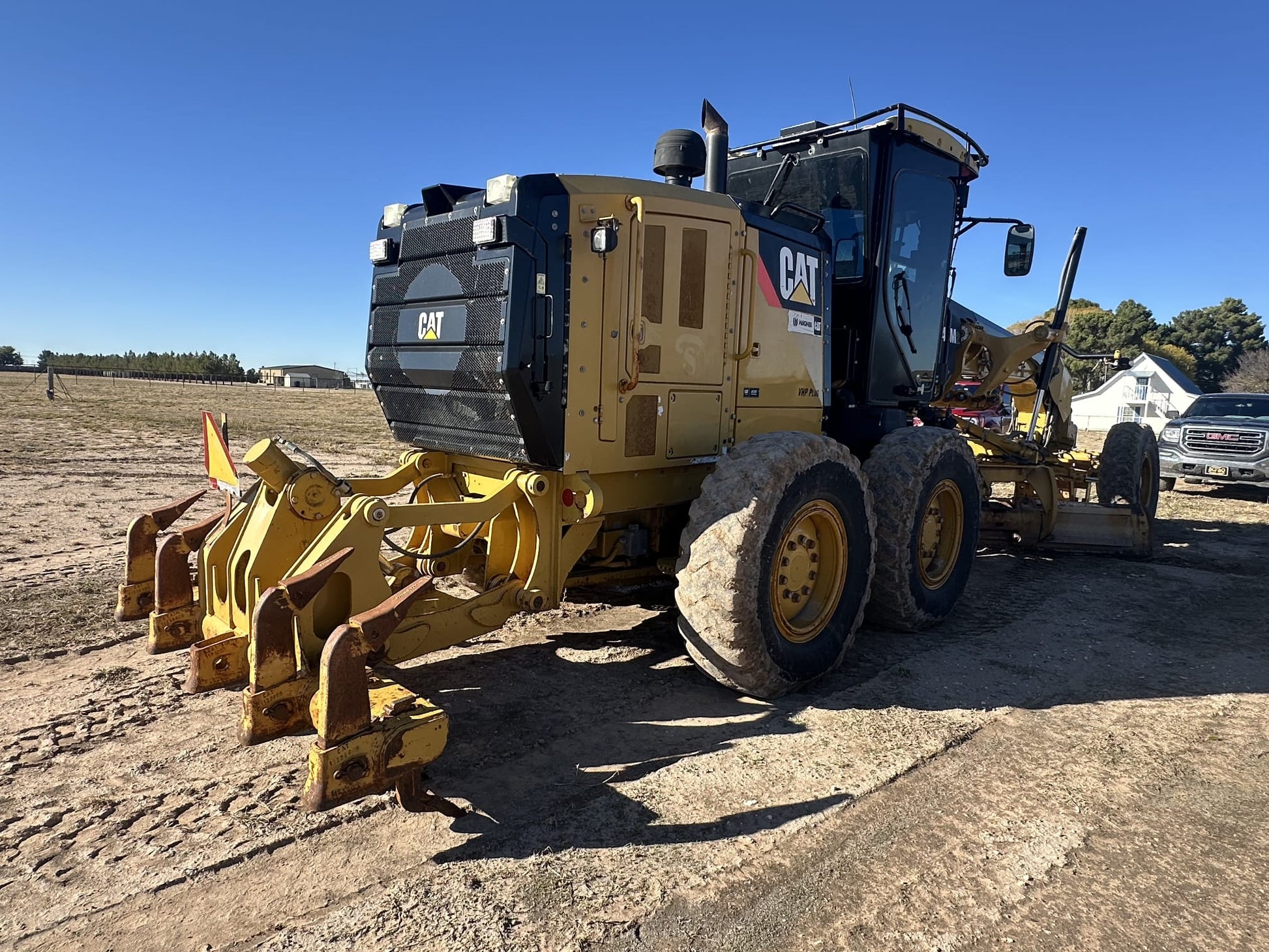

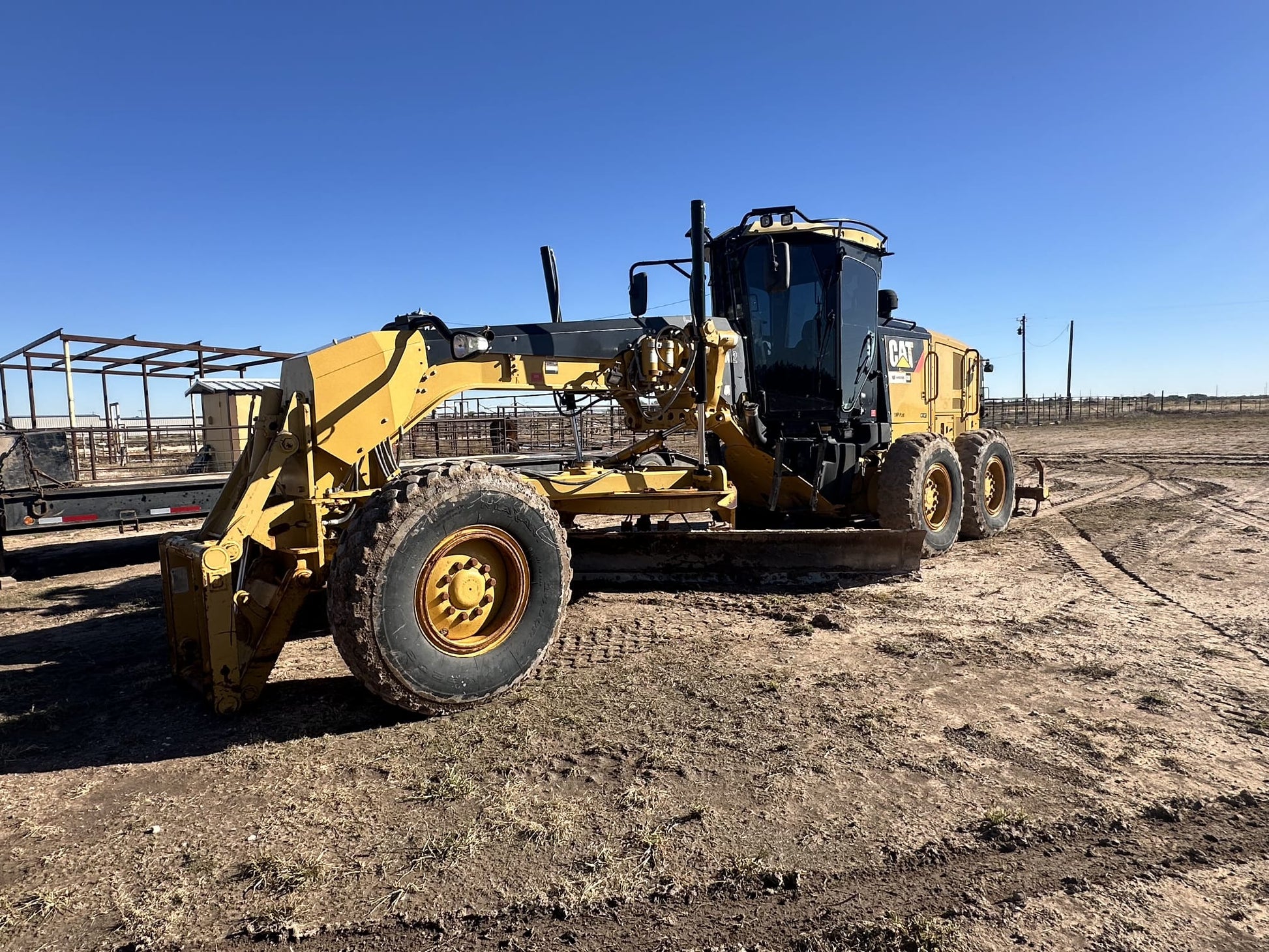

2012 Caterpillar 140M Motor Grader
2012 Caterpillar 140M Motor Grader
Regular price
$150,000.00 USD
Regular price
Sale price
$150,000.00 USD
Unit price
per
Couldn't load pickup availability
Year: 2012
Make: Caterpillar
Model: 140M Motor Grader

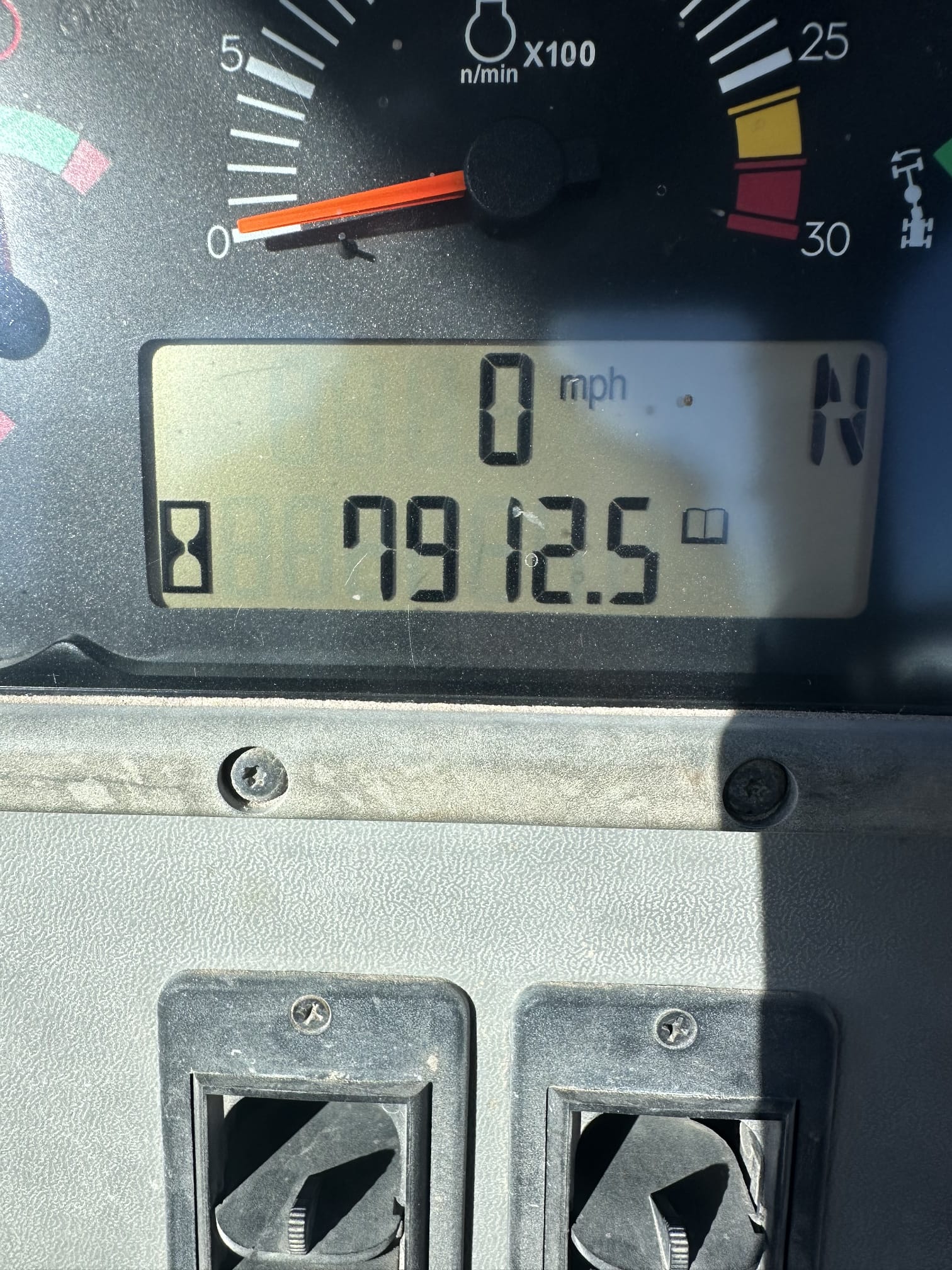

Hours: 7913
Engine
Number Of Cylinders
6
Engine Make
2236
Engine Model
C7 ACERT VHP
Power Measured @
2000rpm
Max Power
183hp
Ripper
Pry-Out Force
26259lb
Ripping Depth - Maximum
16.8in
Ripper Shank Holders
5
Penetration Force
20540lb
Machine Length Increase, Beam Raised
36.2in
Ripper Shank Holder Spacing
21in
Transmission
Transmission Type
Direct drive, power shift, countershaft
Number Of Gears - Forward
8
Number Of Gears - Reverse
6
Max Speed - Forward
29mph
Max Speed - Reverse
22.9mph
Hydraulic System
Pump Type
Variable piston
Pump Flow
55.7gal/min
Relief Valve Pressure
3500psi
Moldboard
Blade Width
12ft in
Arc Radius
16.3in
Throat Clearance
6.5in
Cutting Edge Width
6in
Cutting Edge Thickness
0.6in
End Bit - Width
6in
End Bit - Thickness
0.6in
Moldboard - Height
24in
Moldboard - Thickness
0.9in
Moldboard - Width
12ft in
Blade Pull - Maximum Gvw
31758lb
Blade Pull - Base Gvw
24294lb
Down Pressure - Maximum Gvw
28503lb
Down Pressure - Base Gvw
16410lb
Circle
Diameter
60.2in
Shift Left
27.4in
Shift Right
28.7in
Max Reach Outside Tires - Left
70.5in
Max Reach Outside Tires - Right
77.9in
Max Lift Above Ground
18.9in
Blade Tip Angle - Front
40 Degrees
Blade Tip Angle - Rear
5 Degrees
Operating Specifications
Top Speed - Forward
29mph
Top Speed - Reverse
22.9mph
