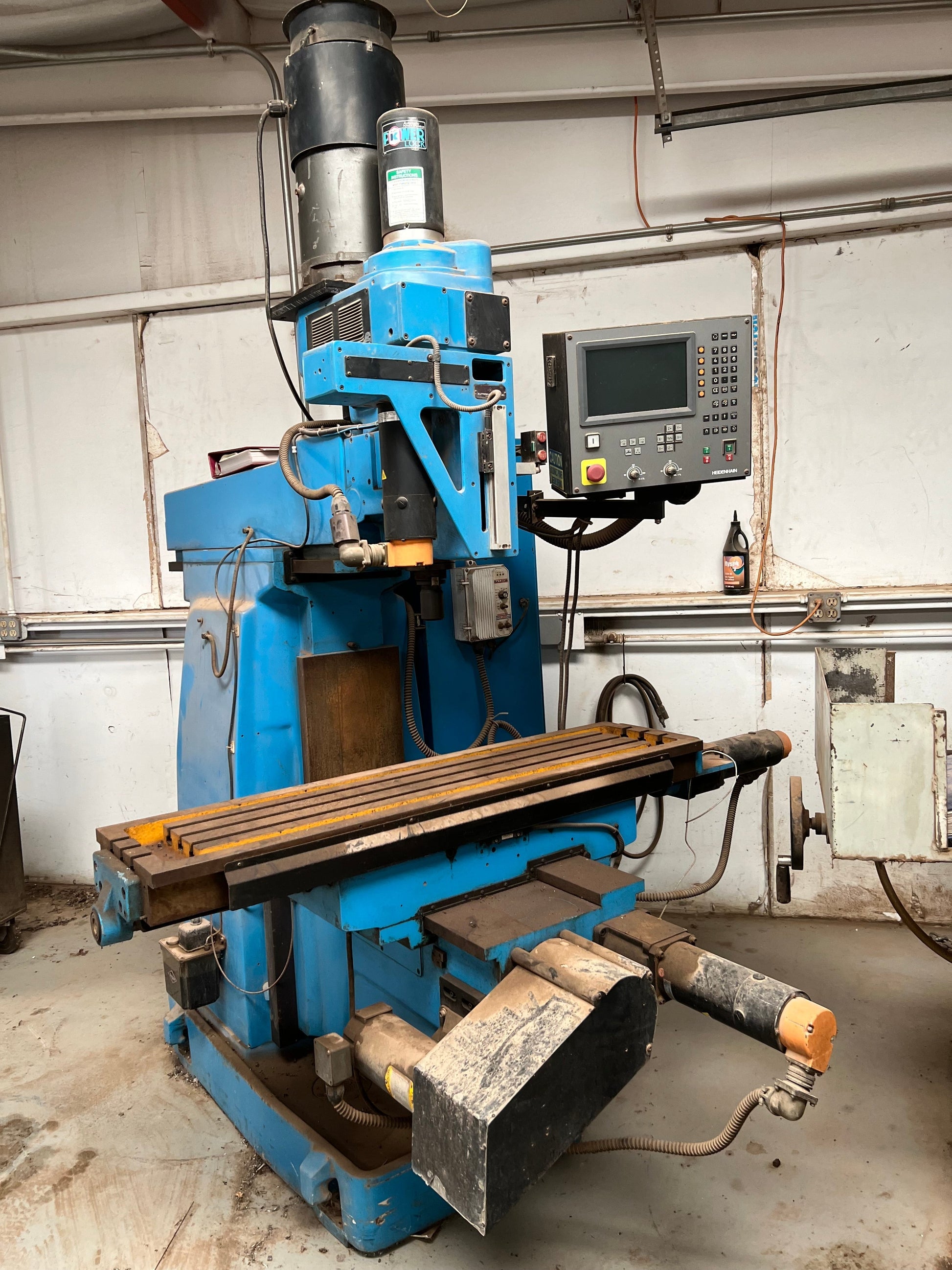

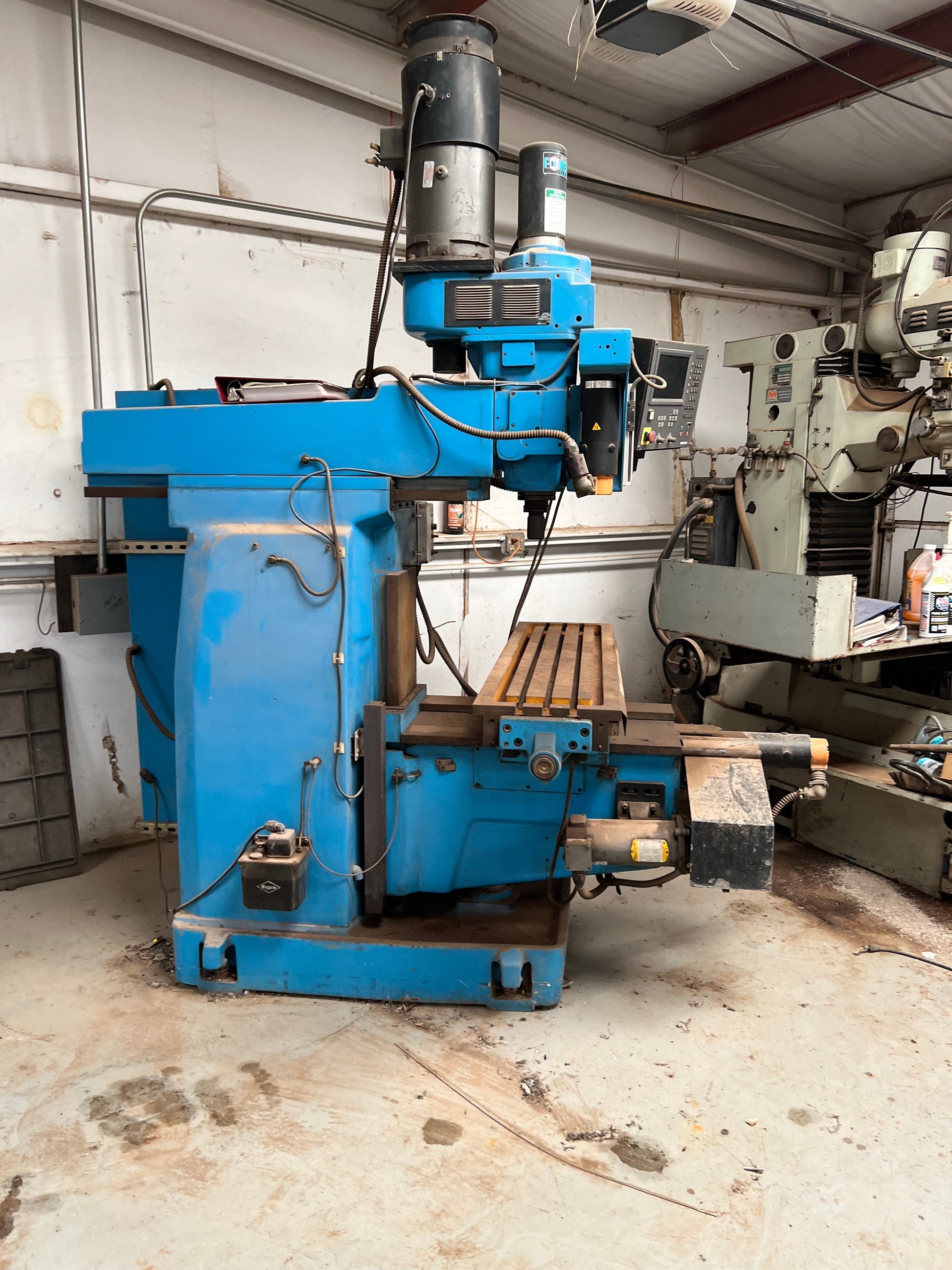

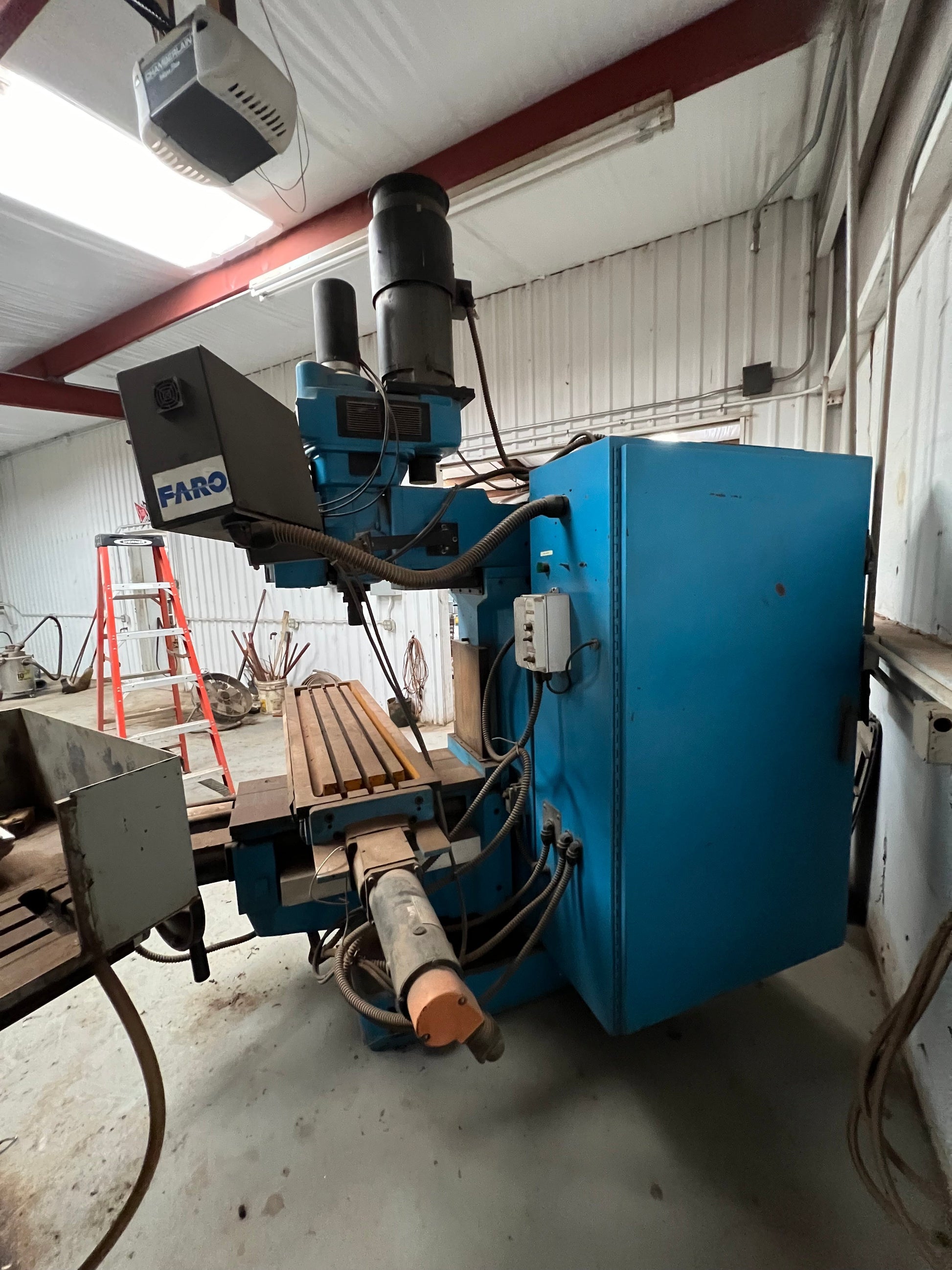

SHIZUOKA CNC Knee Mill with Heidenhain TNC310 Control, 10HP Spindle Motor, Used

Stock # 4519

Model: Heidenhain TNC310

Control

Asten Pro

Serial #:

Specifications:

Table Size

13"x 51"

Number of

3; X, Y and Spindle

Controlled Axes

Travels: X x Y x

30"x 15"x 5.5"

Z (Approximate)

Spindle Taper

#40

Spindle Motor

10HP

Control

Heidenhain 310 CNC

Spindle Speeds

Programmable to 4,000RPM

Electrics

Knee Travel

Dimensions

Weight,

Approximate

Equipped with

220V 3Ph 60C

16" with non-CNC Power

Knee Lift

DC Variable with

Heidenhain scale for knee positioning.

72" L-R x 94" F-B x 108"

Ht.

6,600 Lbs.

Heidenhain glass scale feedback system, Power Drawbar, Several #40NT Holders, Box Ways on Cross Slide and Knee

This machine is in exceptionally nice condition, having been rebuilt and retrofitted in 2005.
